Canal de Panama
Panama, Panama
Deux écluses (Gatun/Atlantique et Miraflores/Pacifique) avec trois sas créés l'un après l'autre, chacun ayant une longueur de 403 m et une largeur de 55 m. Longueur des écluses : 1,8 km chacune pour une différence de hauteur totale de 26 m
Période de construction : 2011 - 2014
Quantité de béton utilisée : 6,600,000 m³
Quantité d'acier utilisée : 340 000 tonnes
Surface de coffrage : 2 200 000 m²
4 200 employés sur le chantier
70 grues et 30 stations de pompage du béton
Le projet
Impressions sur le processus de projet

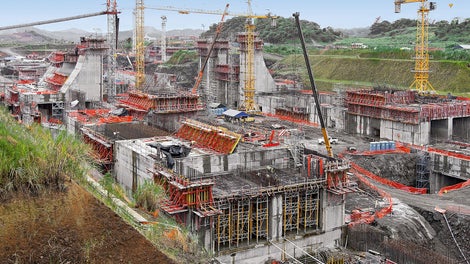

Plus de 12 mois après le début des travaux de développement du canal de Panama, les dimensions et les éléments structurels massifs sont clairement visibles.

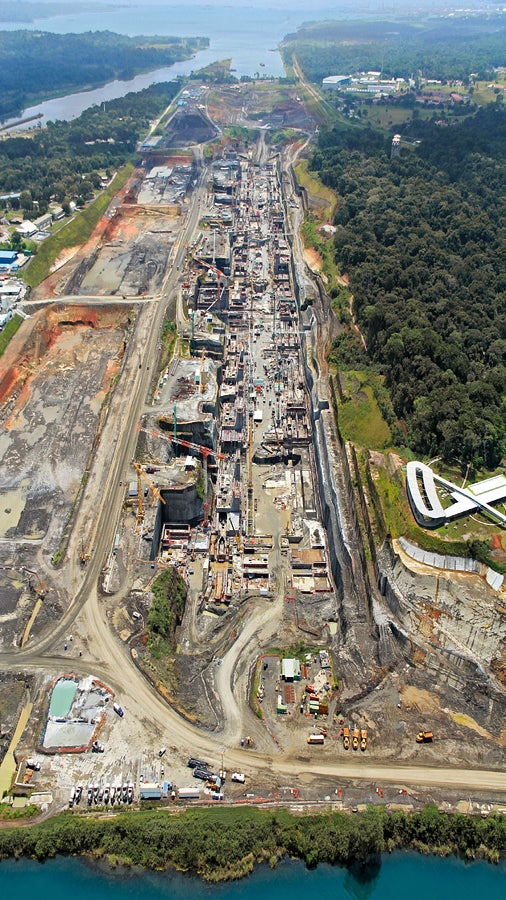

L'écluse de Gatun, sur la côte atlantique, comporte trois compartiments successifs de 403 m de long et 55 m de large.

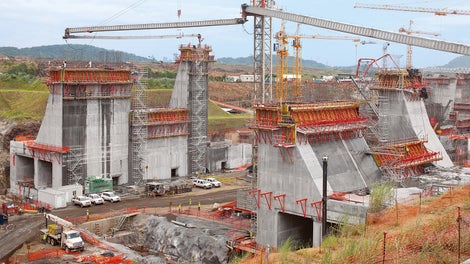

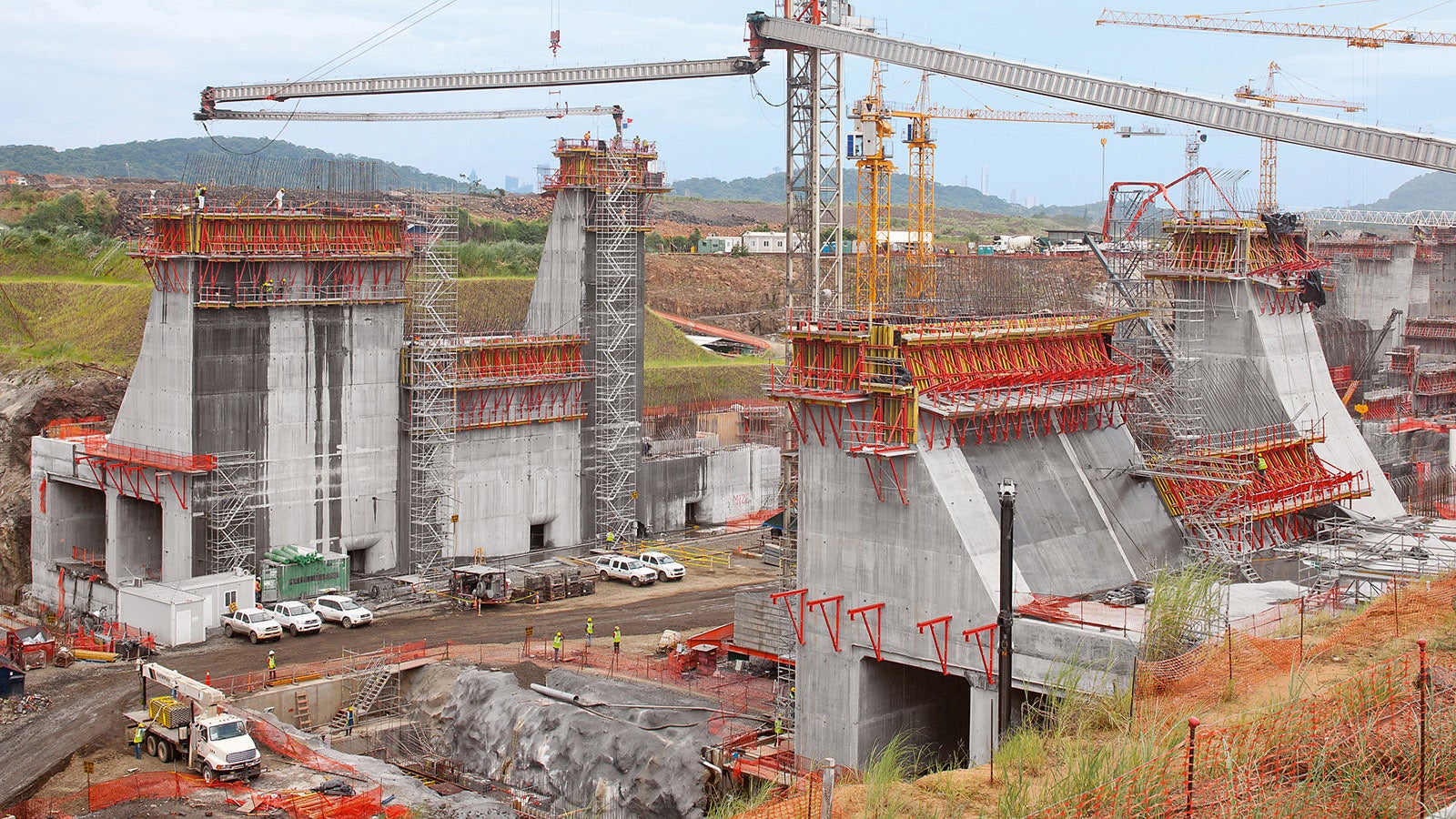

PERI soutient le "projet de construction du siècle" en planifiant et en livrant d'énormes quantités de systèmes de coffrage et d'échafaudage.
Un élément essentiel de la solution PERI est le nouveau système grimpant SCS - facile à manipuler et permettant de transférer des charges élevées.

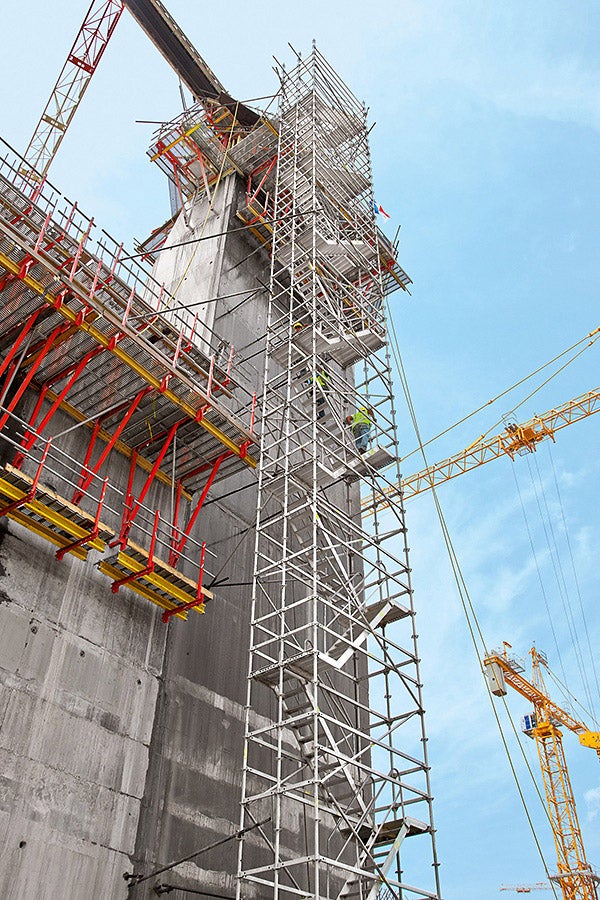

Les systèmes PERI utilisés ont été adaptés de manière optimale aux exigences du site et comprennent également l'intégration de moyens d'accès sûrs tels que l'escalier d'échafaudage PERI UP.

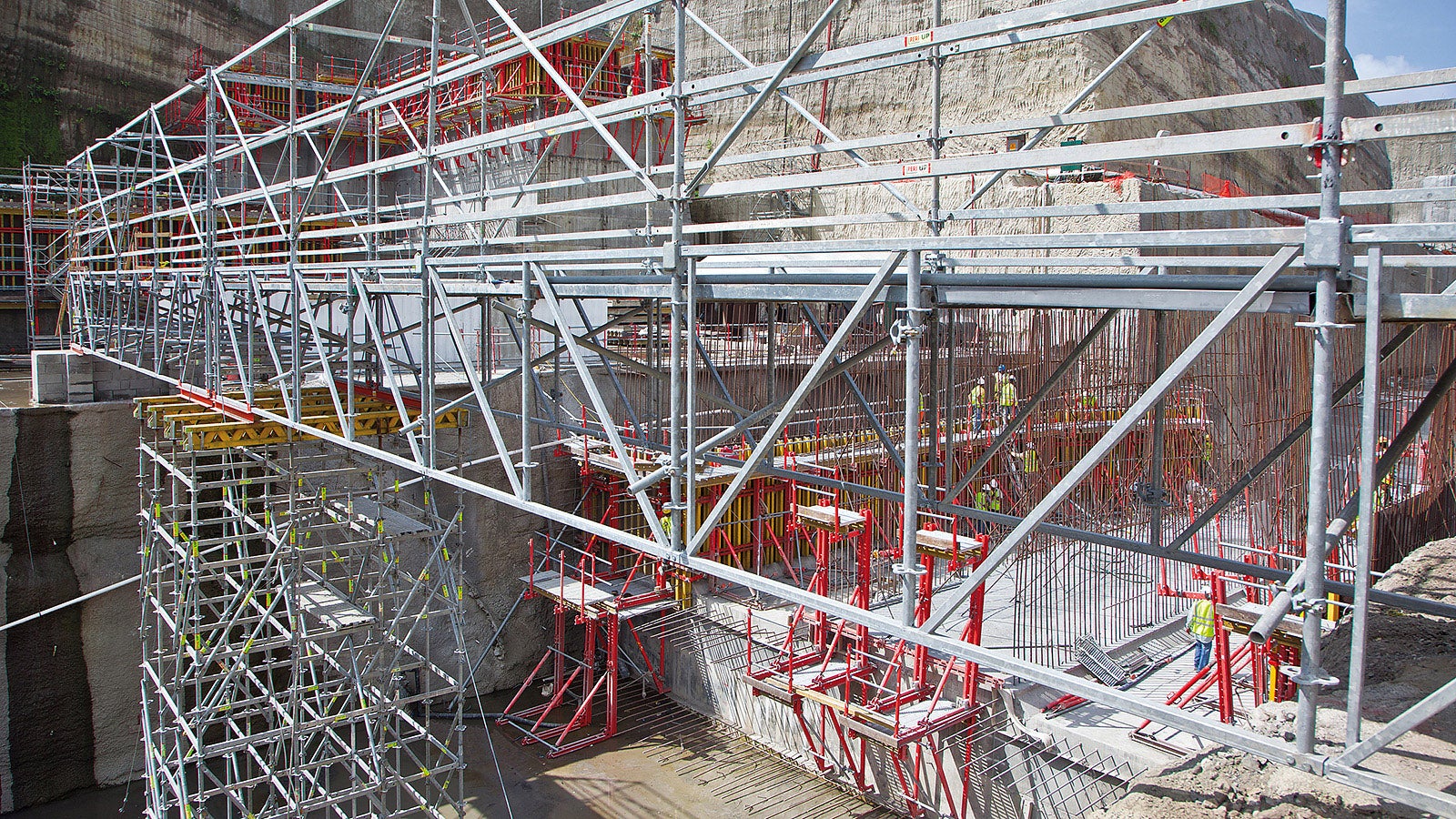

Le système de poutres en treillis PERI LGS offre des solutions sûres et rationnelles utilisant des composants de système pour les grandes portées ou les charges élevées.

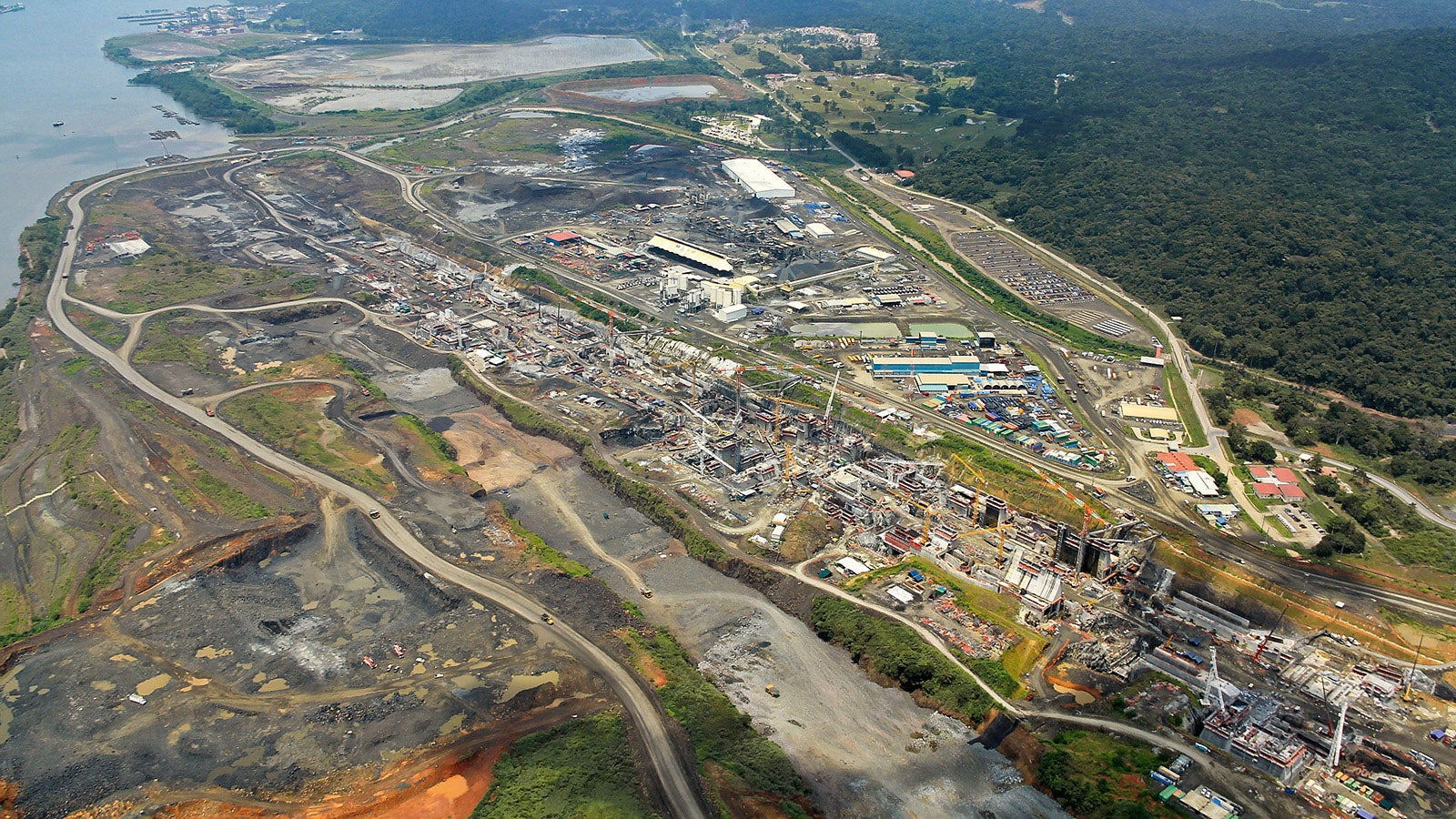

Le système d'écluses de Miraflores, sur la côte pacifique, mesure environ 1,8 km de long et soulève les navires à l'aide de trois chambres à une hauteur de 26 m au-dessus du niveau de la mer. (Photo : ACP)

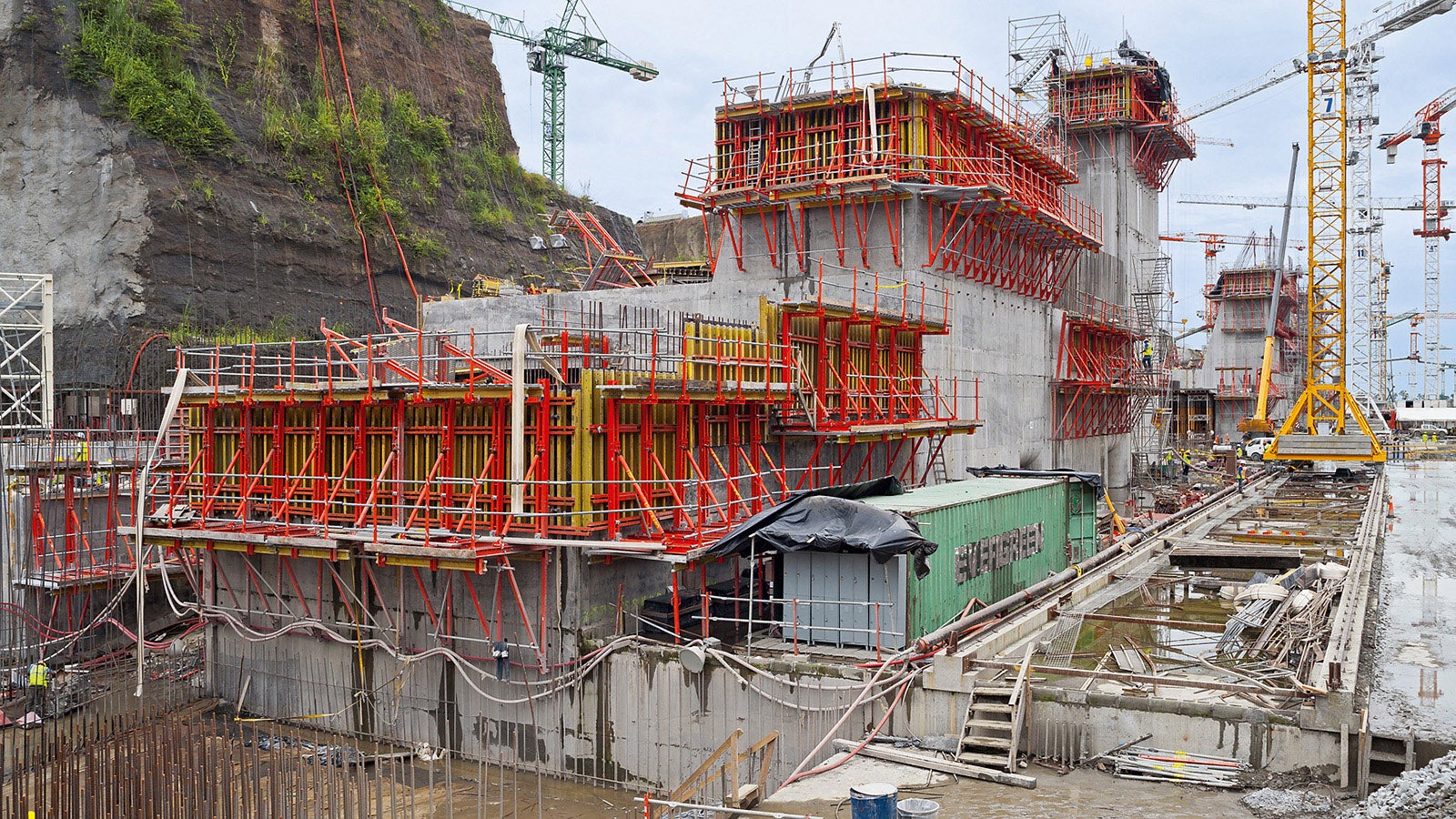

Grâce à la solution de coffrage et d'échafaudage de PERI, des composants massifs, comme ceux présentés ici pour l'écluse de Miraflores, peuvent être réalisés rapidement et de manière rentable.
Les solutions de table avec tours MULTIPROP font également partie du concept global PERI.
![Lock facilities, Panama Canal, Panama - More than 12 months after starting the development work on the Panama Canal, the dimensions and the massive structural elements are clearly visible.](https://cdn.peri.cloud/.imaging/mWide/dam/48ec6760-de42-4b2b-8db7-cfd80dbb28bb/47529/lock-facilities-panama-canal-the-dimensions-and-the-massive-structural-elements-are-clearly-visible.jpg)
![Lock facilities, Panama Canal - the dimensions and the massive structural elements are clearly visible Lock facilities, Panama Canal, Panama - More than 12 months after starting the development work on the Panama Canal, the dimensions and the massive structural elements are clearly visible.](https://cdn.peri.cloud/.imaging/mWide/dam/48ec6760-de42-4b2b-8db7-cfd80dbb28bb/47529/lock-facilities-panama-canal-the-dimensions-and-the-massive-structural-elements-are-clearly-visible.jpg)
![Lock facilities, Panama Canal, Panama - The Gatun lock facility on the Atlantic coast has three chambers positioned one after the other - each 403 m long and 55 m wide.](https://cdn.peri.cloud/.imaging/lPortrait/dam/264af76f-8227-4b26-b337-90f88c0c7fa9/47535/lock-facilities-panama-canal-the-gatun-lock-facility-on-the-atlantic-coast.jpg)
![Lock facilities, Panama Canal - The Gatun lock facility on the Atlantic coast Lock facilities, Panama Canal, Panama - The Gatun lock facility on the Atlantic coast has three chambers positioned one after the other - each 403 m long and 55 m wide.](https://cdn.peri.cloud/.imaging/lPortrait/dam/264af76f-8227-4b26-b337-90f88c0c7fa9/47535/lock-facilities-panama-canal-the-gatun-lock-facility-on-the-atlantic-coast.jpg)
![Lock facilities, Panama Canal, Panama - PERI is supporting the "construction project of the century" with the planning and delivery of huge quantities of formwork and scaffolding systems.](https://cdn.peri.cloud/.imaging/mWide/dam/4f9e4b5f-0017-4a6a-b2d6-7f0d1f9cf67b/47528/lock-facilities-panama-canal-planning-and-delivery-of-huge-quantities-of-formwork-and-scaffolding-systems.jpg)
![Lock facilities, Panama Canal - planning and delivery of huge quantities of formwork and scaffolding systems Lock facilities, Panama Canal, Panama - PERI is supporting the "construction project of the century" with the planning and delivery of huge quantities of formwork and scaffolding systems.](https://cdn.peri.cloud/.imaging/mWide/dam/4f9e4b5f-0017-4a6a-b2d6-7f0d1f9cf67b/47528/lock-facilities-panama-canal-planning-and-delivery-of-huge-quantities-of-formwork-and-scaffolding-systems.jpg)
![Lock facilities, Panama Canal, Panama - With the help of PERI formwork and scaffolding solution, massive components, e.g. as shown here for the Miraflores lock, can be quickly and cost-effectively realized.](https://cdn.peri.cloud/.imaging/mWide/dam/fc031d1e-e3a7-44cd-afcd-67cea12aa696/47572/lock-facilities-panama-canal-massive-components-can-be-realized.jpg)
![Lock facilities, Panama Canal - massive components can be realized Lock facilities, Panama Canal, Panama - With the help of PERI formwork and scaffolding solution, massive components, e.g. as shown here for the Miraflores lock, can be quickly and cost-effectively realized.](https://cdn.peri.cloud/.imaging/mWide/dam/fc031d1e-e3a7-44cd-afcd-67cea12aa696/47572/lock-facilities-panama-canal-massive-components-can-be-realized.jpg)
![Lock facilities, Panama Canal, Panama - The PERI systems used have been optimally adapted to suit site requirements and also include the integration of safe access means such as the PERI UP scaffold staircase.](https://cdn.peri.cloud/.imaging/lPortrait/dam/8416e8fd-25e0-48fa-a7c6-54a6462f569e/47574/lock-facilities-panama-canal-integration-of-safe-access-means-such-as-the-peri-up-scaffold-staircase.jpg)
![Lock facilities, Panama Canal - integration of safe access means such as the PERI UP scaffold staircase Lock facilities, Panama Canal, Panama - The PERI systems used have been optimally adapted to suit site requirements and also include the integration of safe access means such as the PERI UP scaffold staircase.](https://cdn.peri.cloud/.imaging/lPortrait/dam/8416e8fd-25e0-48fa-a7c6-54a6462f569e/47574/lock-facilities-panama-canal-integration-of-safe-access-means-such-as-the-peri-up-scaffold-staircase.jpg)
![Lock facilities, Panama Canal, Panama - The PERI LGS lattice girder system provides safe and rational solutions using system components for large spans or high loads.](https://cdn.peri.cloud/.imaging/mWide/dam/3f9ad04b-a00e-4445-be8a-39408393ca39/47530/lock-facilities-panama-canal-peri-lgs-lattice-girder-system-provides-safe-and-rational-solutions.jpg)
![Lock facilities, Panama Canal - PERI LGS lattice girder system provides safe and rational solutions Lock facilities, Panama Canal, Panama - The PERI LGS lattice girder system provides safe and rational solutions using system components for large spans or high loads.](https://cdn.peri.cloud/.imaging/mWide/dam/3f9ad04b-a00e-4445-be8a-39408393ca39/47530/lock-facilities-panama-canal-peri-lgs-lattice-girder-system-provides-safe-and-rational-solutions.jpg)
![Schleusenanlagen Panamakanal, Panama - The Miraflores lock system on the Pacific coast is around 1.8 km long and lifts the vessels using three chambers to a height of 26 m above sea level. (Photo: ACP)](https://cdn.peri.cloud/.imaging/mWide/dam/91f398de-4b96-44a3-a13b-04bad9ac7ab1/47531/schleusenanlagen-panamakanal-miraflores-lock-system.jpg)
![Schleusenanlagen Panamakanal - Miraflores lock system Schleusenanlagen Panamakanal, Panama - The Miraflores lock system on the Pacific coast is around 1.8 km long and lifts the vessels using three chambers to a height of 26 m above sea level. (Photo: ACP)](https://cdn.peri.cloud/.imaging/mWide/dam/91f398de-4b96-44a3-a13b-04bad9ac7ab1/47531/schleusenanlagen-panamakanal-miraflores-lock-system.jpg)
![Lock facilities, Panama Canal, Panama - With the help of PERI formwork and scaffolding solution, massive components, e.g. as shown here for the Miraflores lock, can be quickly and cost-effectively realized.](https://cdn.peri.cloud/.imaging/mWide/dam/fc031d1e-e3a7-44cd-afcd-67cea12aa696/47572/lock-facilities-panama-canal-massive-components-can-be-realized.jpg)
![Lock facilities, Panama Canal - massive components can be realized Lock facilities, Panama Canal, Panama - With the help of PERI formwork and scaffolding solution, massive components, e.g. as shown here for the Miraflores lock, can be quickly and cost-effectively realized.](https://cdn.peri.cloud/.imaging/mWide/dam/fc031d1e-e3a7-44cd-afcd-67cea12aa696/47572/lock-facilities-panama-canal-massive-components-can-be-realized.jpg)
![Lock facilities, Panama Canal, Panama - Table solutions with MULTIPROP towers are also part of the comprehensive PERI overall concept.](https://cdn.peri.cloud/.imaging/mWide/dam/e2d823a3-e748-4414-baeb-490007e05e88/47573/lock-facilities-panama-canal-table-solutions-with-multiprop-towers.jpg)
![Lock facilities, Panama Canal - Table solutions with MULTIPROP towers Lock facilities, Panama Canal, Panama - Table solutions with MULTIPROP towers are also part of the comprehensive PERI overall concept.](https://cdn.peri.cloud/.imaging/mWide/dam/e2d823a3-e748-4414-baeb-490007e05e88/47573/lock-facilities-panama-canal-table-solutions-with-multiprop-towers.jpg)
![Lock facilities, Panama Canal - the dimensions and the massive structural elements are clearly visible Lock facilities, Panama Canal, Panama - More than 12 months after starting the development work on the Panama Canal, the dimensions and the massive structural elements are clearly visible.](https://cdn.peri.cloud/.imaging/mWide/dam/48ec6760-de42-4b2b-8db7-cfd80dbb28bb/47529/lock-facilities-panama-canal-the-dimensions-and-the-massive-structural-elements-are-clearly-visible.jpg)
Plus de 12 mois après le début des travaux de développement du canal de Panama, les dimensions et les éléments structurels massifs sont clairement visibles.
![Lock facilities, Panama Canal - The Gatun lock facility on the Atlantic coast Lock facilities, Panama Canal, Panama - The Gatun lock facility on the Atlantic coast has three chambers positioned one after the other - each 403 m long and 55 m wide.](https://cdn.peri.cloud/.imaging/lPortrait/dam/264af76f-8227-4b26-b337-90f88c0c7fa9/47535/lock-facilities-panama-canal-the-gatun-lock-facility-on-the-atlantic-coast.jpg)
L'écluse de Gatun, sur la côte atlantique, comporte trois compartiments successifs de 403 m de long et 55 m de large.
![Lock facilities, Panama Canal - planning and delivery of huge quantities of formwork and scaffolding systems Lock facilities, Panama Canal, Panama - PERI is supporting the "construction project of the century" with the planning and delivery of huge quantities of formwork and scaffolding systems.](https://cdn.peri.cloud/.imaging/mWide/dam/4f9e4b5f-0017-4a6a-b2d6-7f0d1f9cf67b/47528/lock-facilities-panama-canal-planning-and-delivery-of-huge-quantities-of-formwork-and-scaffolding-systems.jpg)
PERI soutient le "projet de construction du siècle" en planifiant et en livrant d'énormes quantités de systèmes de coffrage et d'échafaudage.
![Lock facilities, Panama Canal - massive components can be realized Lock facilities, Panama Canal, Panama - With the help of PERI formwork and scaffolding solution, massive components, e.g. as shown here for the Miraflores lock, can be quickly and cost-effectively realized.](https://cdn.peri.cloud/.imaging/mWide/dam/fc031d1e-e3a7-44cd-afcd-67cea12aa696/47572/lock-facilities-panama-canal-massive-components-can-be-realized.jpg)
Un élément essentiel de la solution PERI est le nouveau système grimpant SCS - facile à manipuler et permettant de transférer des charges élevées.
![Lock facilities, Panama Canal - integration of safe access means such as the PERI UP scaffold staircase Lock facilities, Panama Canal, Panama - The PERI systems used have been optimally adapted to suit site requirements and also include the integration of safe access means such as the PERI UP scaffold staircase.](https://cdn.peri.cloud/.imaging/lPortrait/dam/8416e8fd-25e0-48fa-a7c6-54a6462f569e/47574/lock-facilities-panama-canal-integration-of-safe-access-means-such-as-the-peri-up-scaffold-staircase.jpg)
Les systèmes PERI utilisés ont été adaptés de manière optimale aux exigences du site et comprennent également l'intégration de moyens d'accès sûrs tels que l'escalier d'échafaudage PERI UP.
![Lock facilities, Panama Canal - PERI LGS lattice girder system provides safe and rational solutions Lock facilities, Panama Canal, Panama - The PERI LGS lattice girder system provides safe and rational solutions using system components for large spans or high loads.](https://cdn.peri.cloud/.imaging/mWide/dam/3f9ad04b-a00e-4445-be8a-39408393ca39/47530/lock-facilities-panama-canal-peri-lgs-lattice-girder-system-provides-safe-and-rational-solutions.jpg)
Le système de poutres en treillis PERI LGS offre des solutions sûres et rationnelles utilisant des composants de système pour les grandes portées ou les charges élevées.
![Schleusenanlagen Panamakanal - Miraflores lock system Schleusenanlagen Panamakanal, Panama - The Miraflores lock system on the Pacific coast is around 1.8 km long and lifts the vessels using three chambers to a height of 26 m above sea level. (Photo: ACP)](https://cdn.peri.cloud/.imaging/mWide/dam/91f398de-4b96-44a3-a13b-04bad9ac7ab1/47531/schleusenanlagen-panamakanal-miraflores-lock-system.jpg)
Le système d'écluses de Miraflores, sur la côte pacifique, mesure environ 1,8 km de long et soulève les navires à l'aide de trois chambres à une hauteur de 26 m au-dessus du niveau de la mer. (Photo : ACP)
![Lock facilities, Panama Canal - massive components can be realized Lock facilities, Panama Canal, Panama - With the help of PERI formwork and scaffolding solution, massive components, e.g. as shown here for the Miraflores lock, can be quickly and cost-effectively realized.](https://cdn.peri.cloud/.imaging/mWide/dam/fc031d1e-e3a7-44cd-afcd-67cea12aa696/47572/lock-facilities-panama-canal-massive-components-can-be-realized.jpg)
Grâce à la solution de coffrage et d'échafaudage de PERI, des composants massifs, comme ceux présentés ici pour l'écluse de Miraflores, peuvent être réalisés rapidement et de manière rentable.
![Lock facilities, Panama Canal - Table solutions with MULTIPROP towers Lock facilities, Panama Canal, Panama - Table solutions with MULTIPROP towers are also part of the comprehensive PERI overall concept.](https://cdn.peri.cloud/.imaging/mWide/dam/e2d823a3-e748-4414-baeb-490007e05e88/47573/lock-facilities-panama-canal-table-solutions-with-multiprop-towers.jpg)
Les solutions de table avec tours MULTIPROP font également partie du concept global PERI.
