Pont autoroutier sur le Rio Sordo
Vila Real, Portugal
Pont de l'autoroute A4 sur le Rio Sordo dans les montagnes du Marão.
Conception : Pont à cinq sections avec deux superstructures séparées
Processus de construction : Méthode en porte-à-faux, travées de rive sur faux-plancher
Longueur totale : 412 m
Le projet
Impressions sur le processus de projet

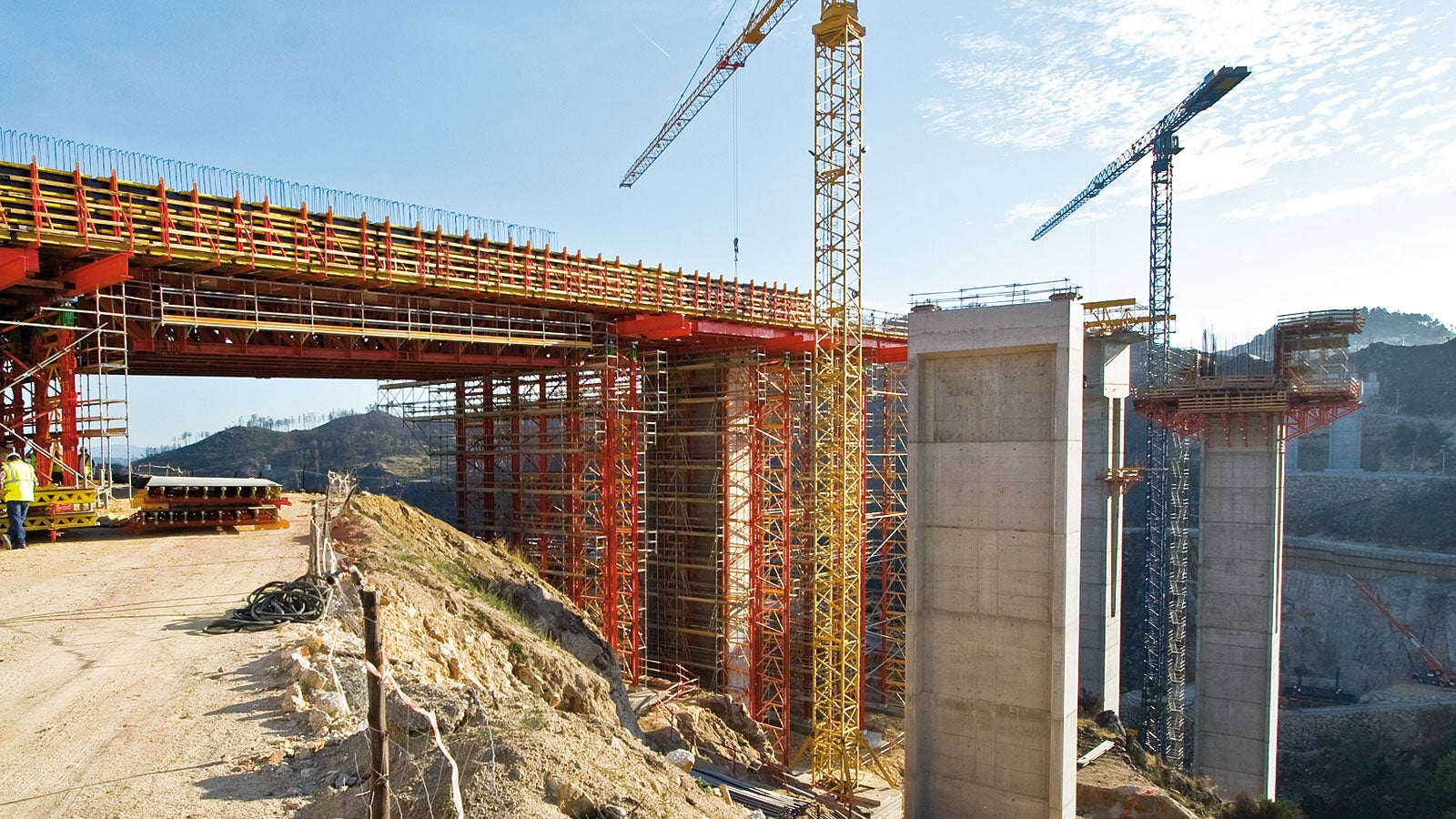

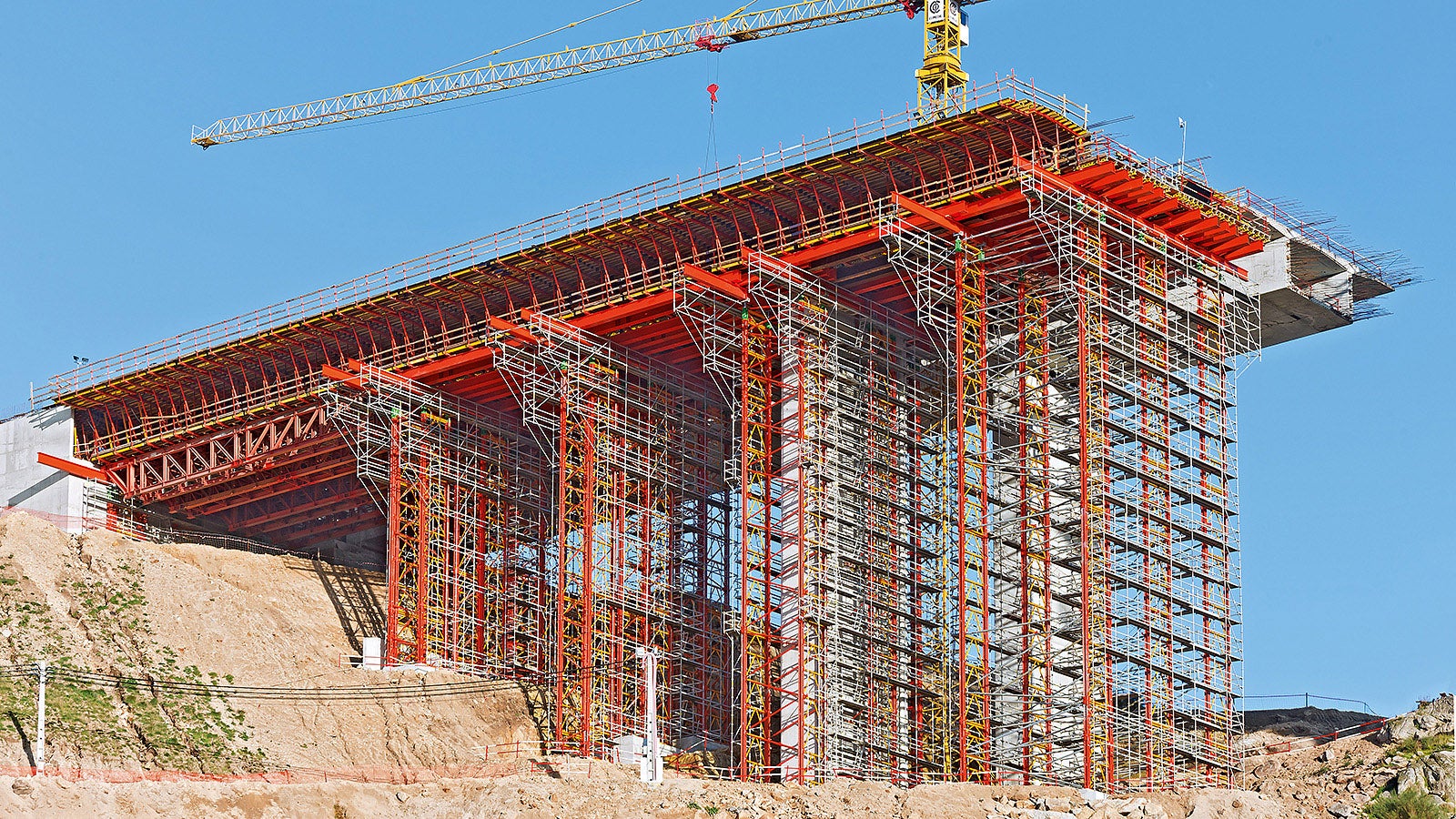

Des tours d'étaiement VARIOKIT VST de 30 m de haut ont servi de faux-étaiement pour la construction des sections de bord du pont. Chaque pied a supporté une charge d'environ 600 kN.
Le coffrage VARIOKIT était un élément important d'une solution complète de coffrage et d'échafaudage PERI pour le pont autoroutier de 412 m de long qui enjambe le Rio Sordo.

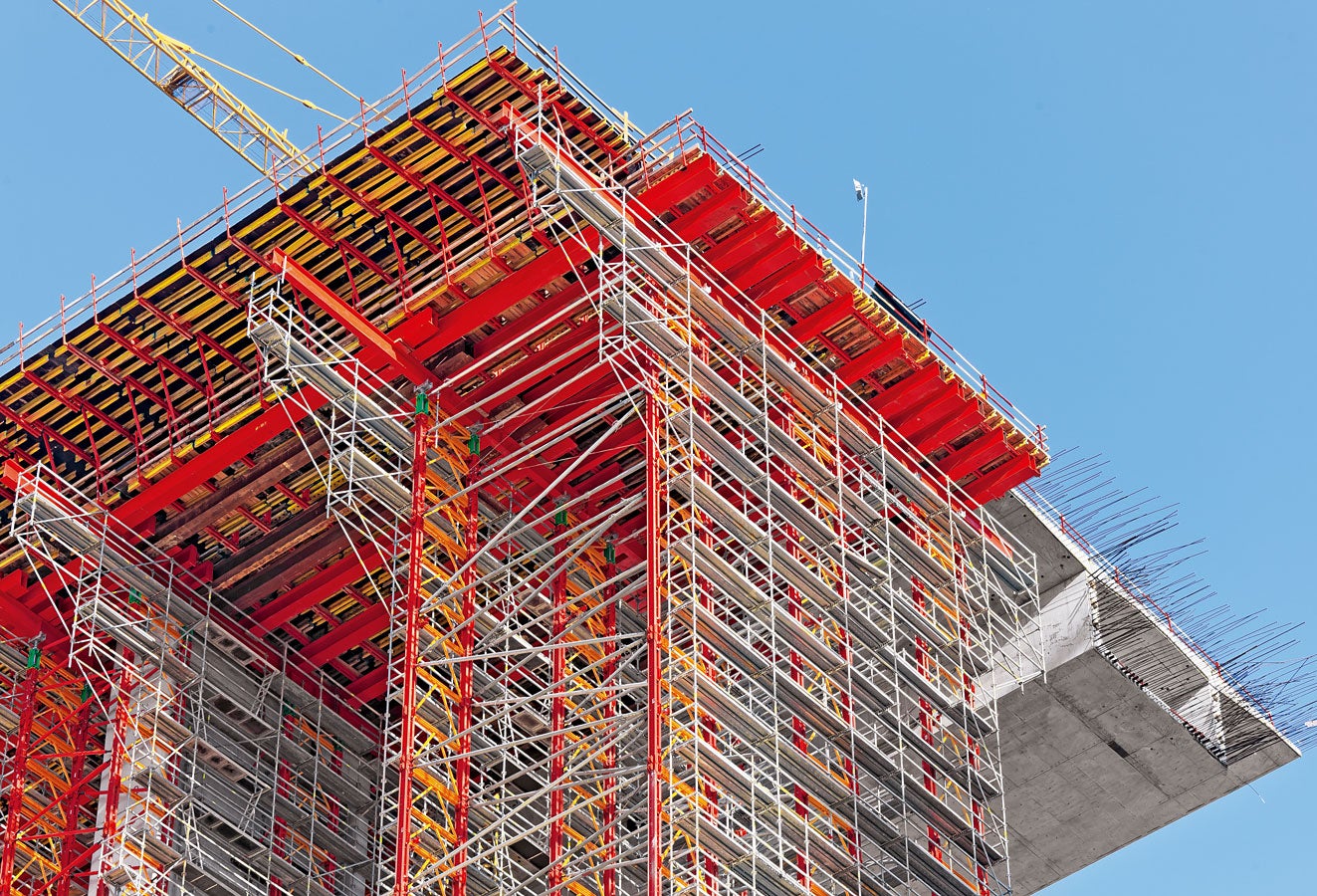

Le coffrage de la superstructure ainsi que le faux-semblant ont été basés sur le kit de construction technique VARIOKIT.

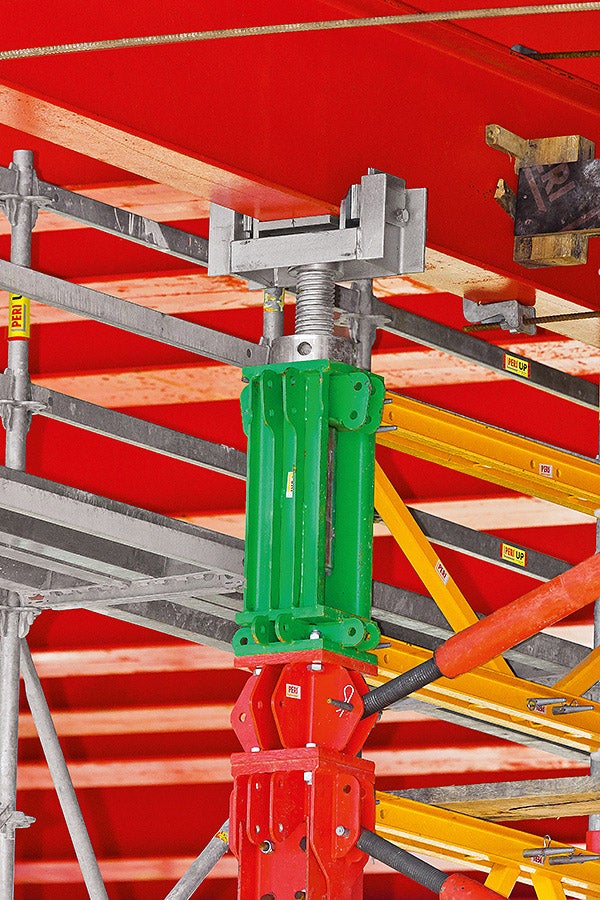

La tête de broche VST 100 a permis d'abaisser et de lever hydrauliquement jusqu'à 300 mm à pleine charge.

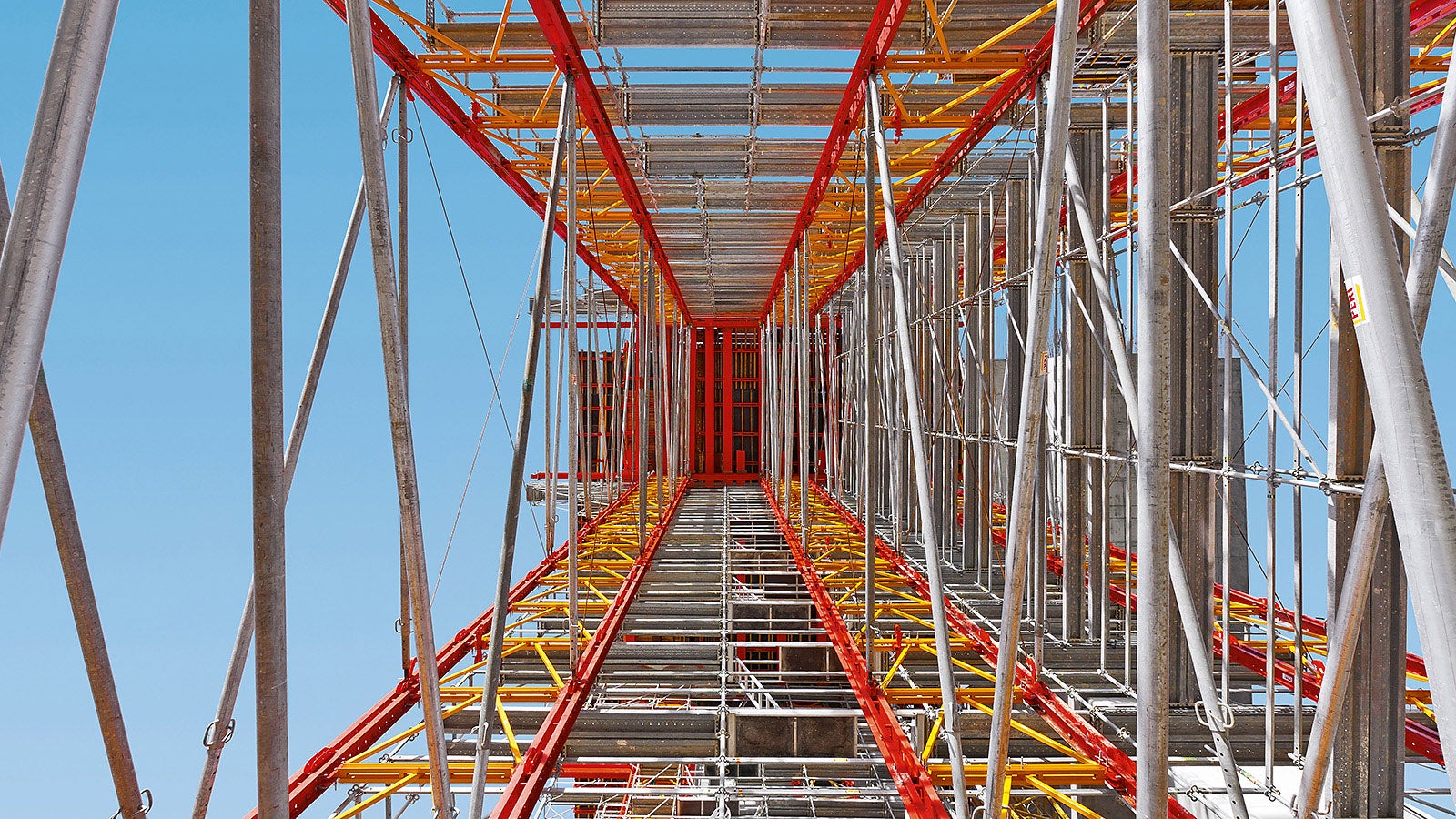

Les sections de l'échafaudage d'étaiement de 2,00 m de large sont reliées longitudinalement à l'aide de broches robustes et d'étais de traction-poussée pour former des tours d'étaiement.

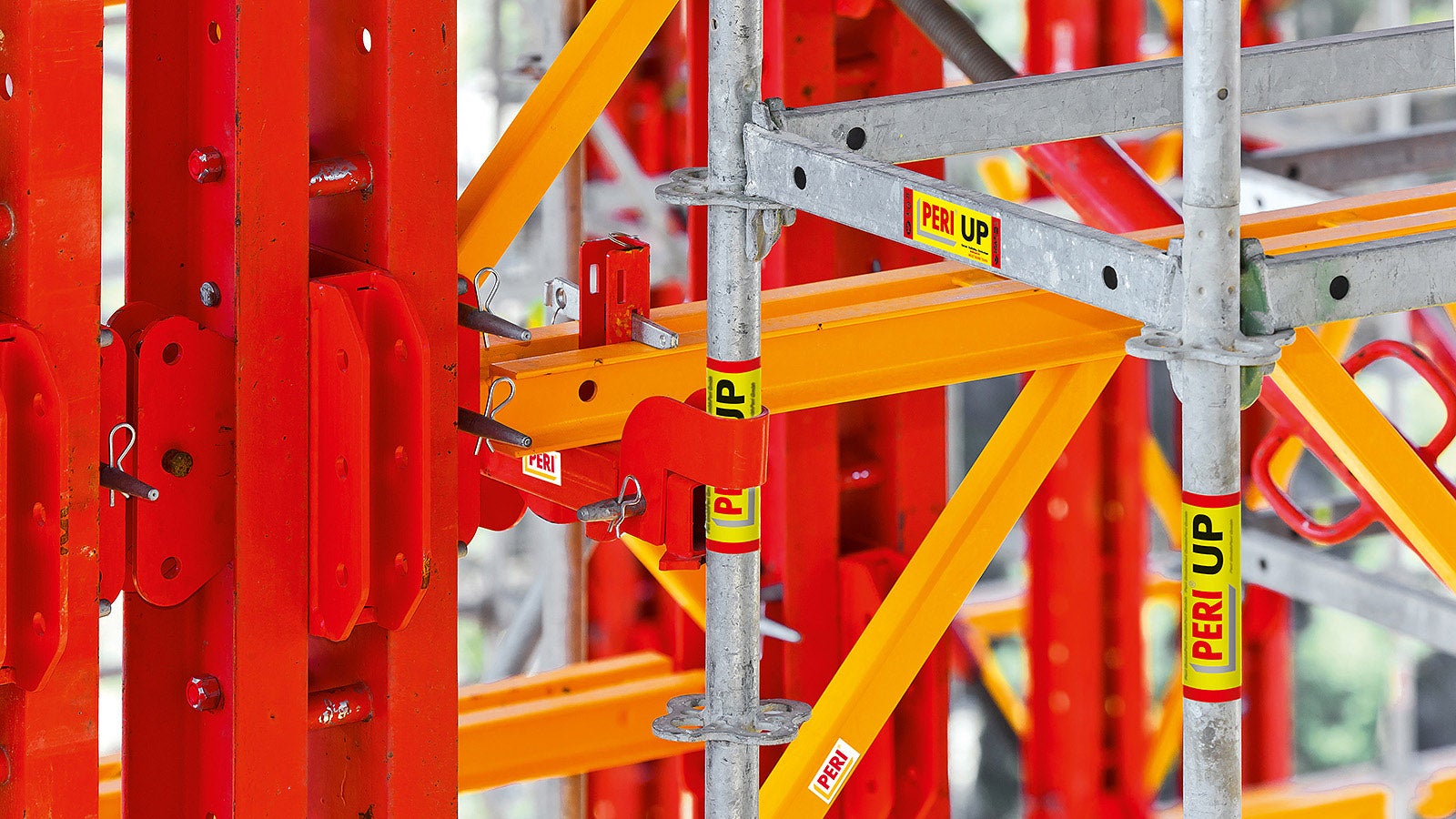

VARIOKIT et PERI UP sont deux systèmes de construction modulaire dotés d'une grille métrique flexible.

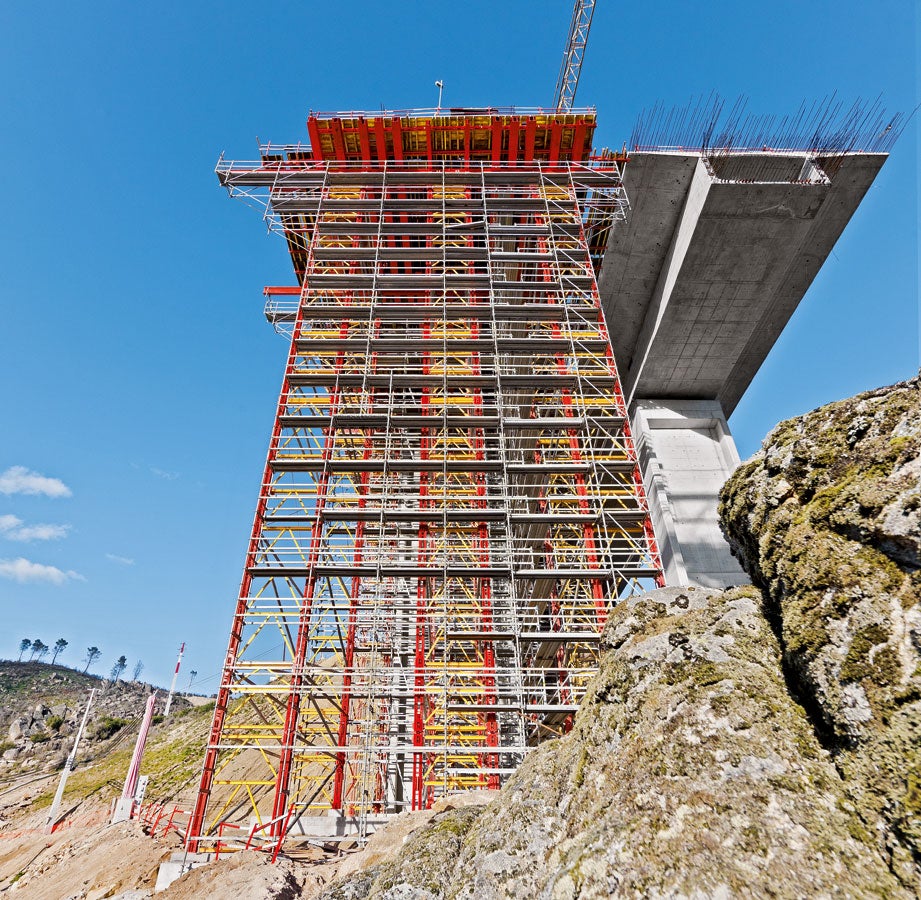

La combinabilité avec le système d'échafaudage PERI UP a assuré une accessibilité maximale et donc des conditions de travail sûres sur le site de construction.
