Bâtiment de l'aérogare intermédiaire
Abou Dhabi, Émirats arabes unis
Aérogare en forme de X (Midfield Terminal Building MTB), située entre deux pistes, pouvant accueillir 65 avions de grande taille
Structure centrale de sept étages d'une hauteur de 50 m (Central Processor), d'une superficie totale de 700 000 m².
12 000 ouvriers se relaient sur le site
Ouverture prévue en 2017 pour une capacité de 30 millions de passagers par an.
Le projet
Impressions sur le processus de projet

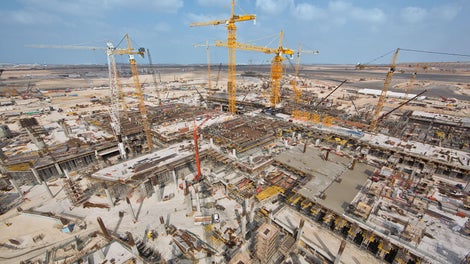

Le complexe du terminal Midfield est le nec plus ultra des chantiers de construction : afin de respecter le calendrier de construction serré, PERI a planifié et livré les systèmes de coffrage et d'échafaudage, et a fourni une nouvelle performance convaincante grâce à un service d'ingénierie compétent et à la fourniture d'énormes quantités de matériaux dans des délais très courts.

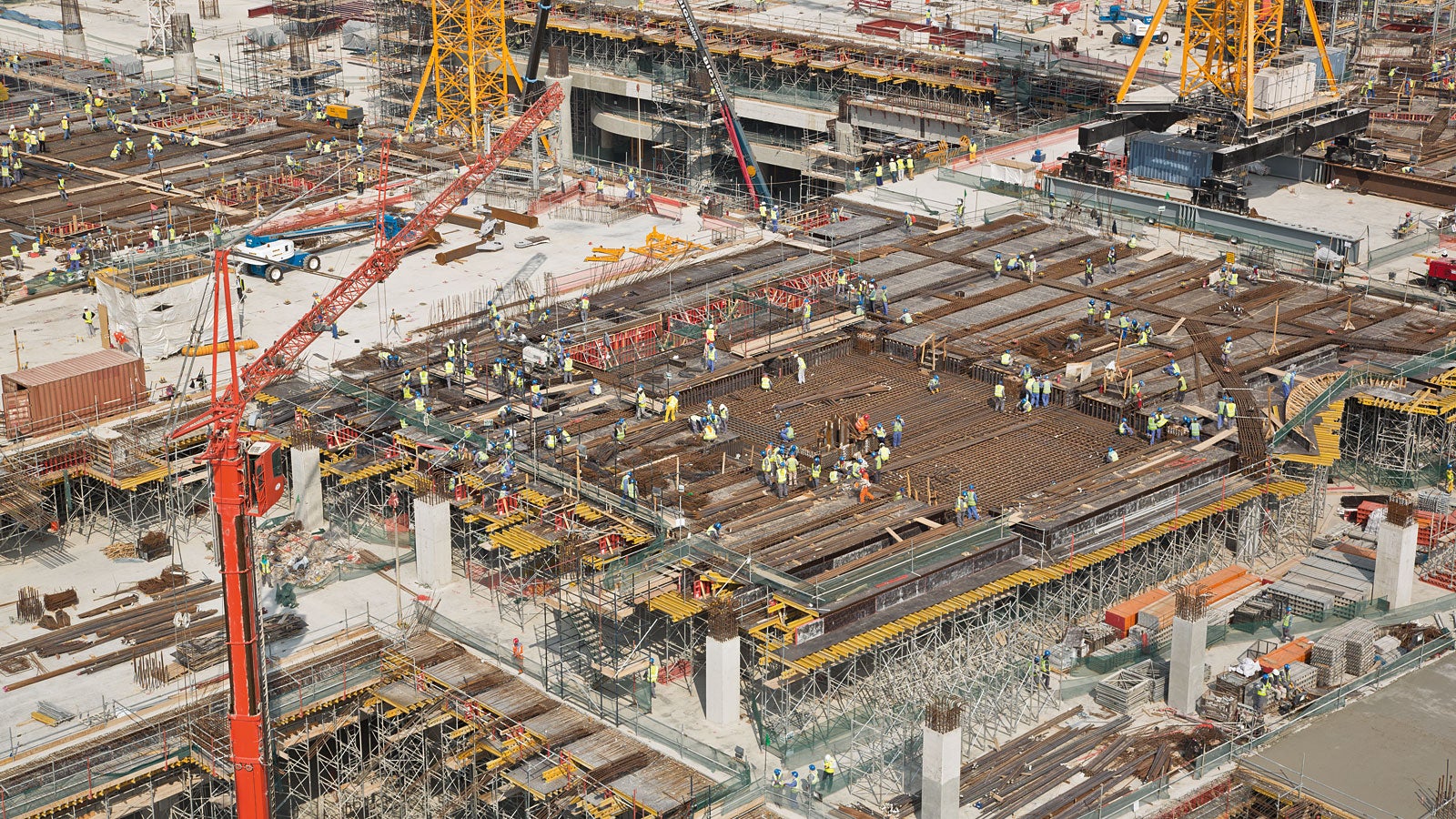

Plus de 6 000 tables PD 8 sont utilisées en permanence, ce qui équivaut à une surface de près de 10 terrains de football.

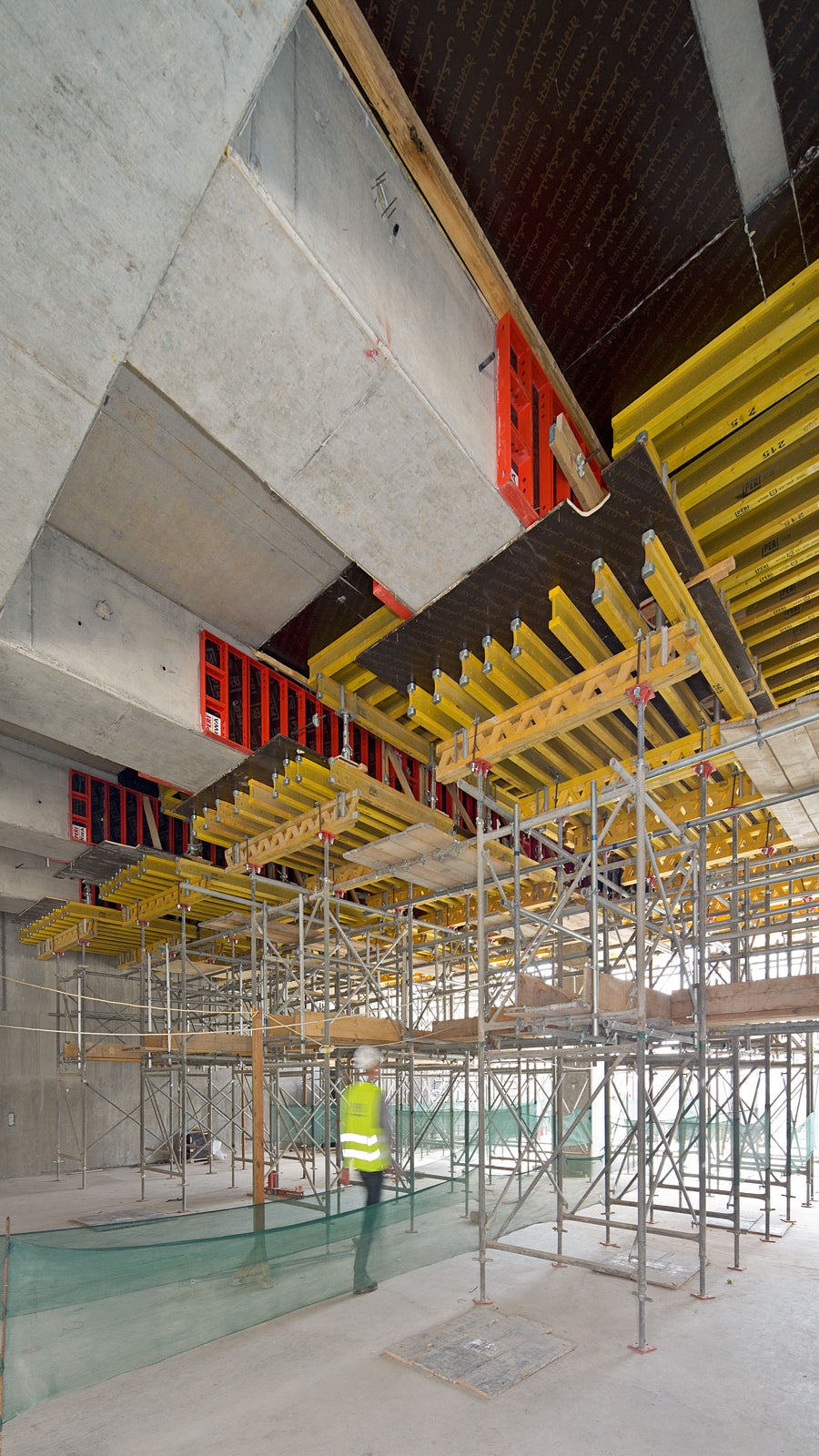

Les poutres massives sont construites en une seule coulée avec les dalles - à l'aide de tables de dalles PD 8 robustes et porteuses et d'éléments LIWA légers comme coffrage latéral.

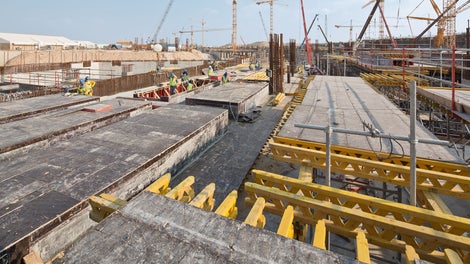

Les tables de dalles PD 8 mobiles forment la sous-structure porteuse le long des poutres ; pour les dalles, on utilise le coffrage de dalles à poutrelles MULTIFLEX.
Transport latéral aisé : les tables à dalles PD 8 peuvent être déplacées à la main à l'aide d'un chariot de transport. Cela permet de réduire considérablement les besoins en grues.

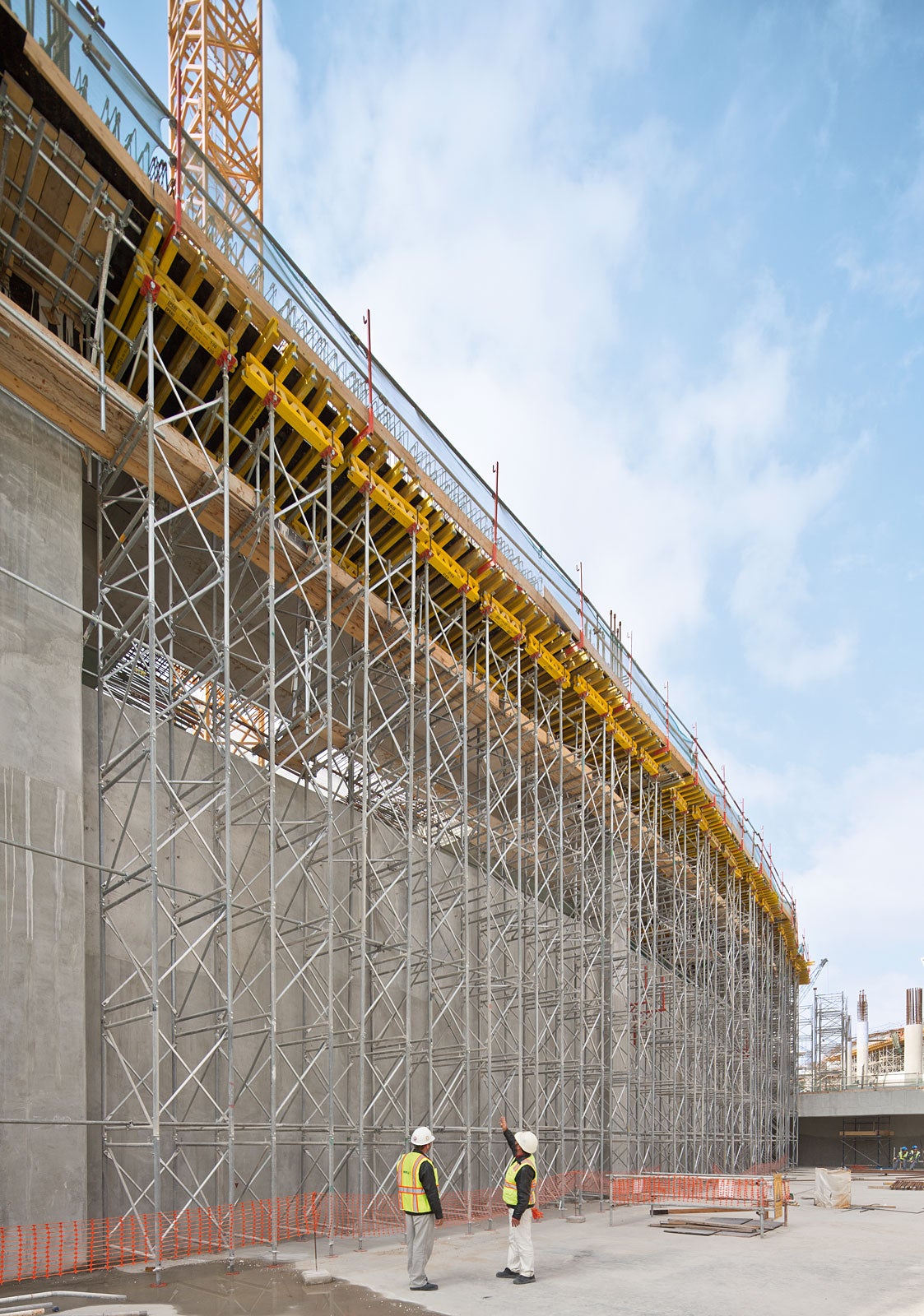

PD 8 est le système d'étaiement éprouvé pour les tables de dalles et supporte des charges élevées. Avec seulement deux hauteurs de cadre différentes, il est possible de réaliser presque toutes les hauteurs souhaitées.

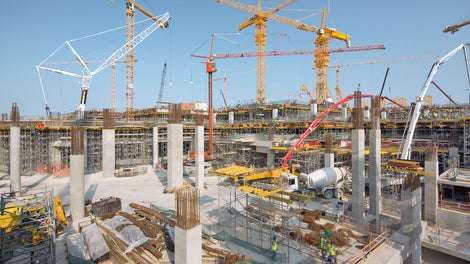

Le traitement de plus de 1 000 m³ par jour nécessite un nombre considérable de personnel et de matériel.

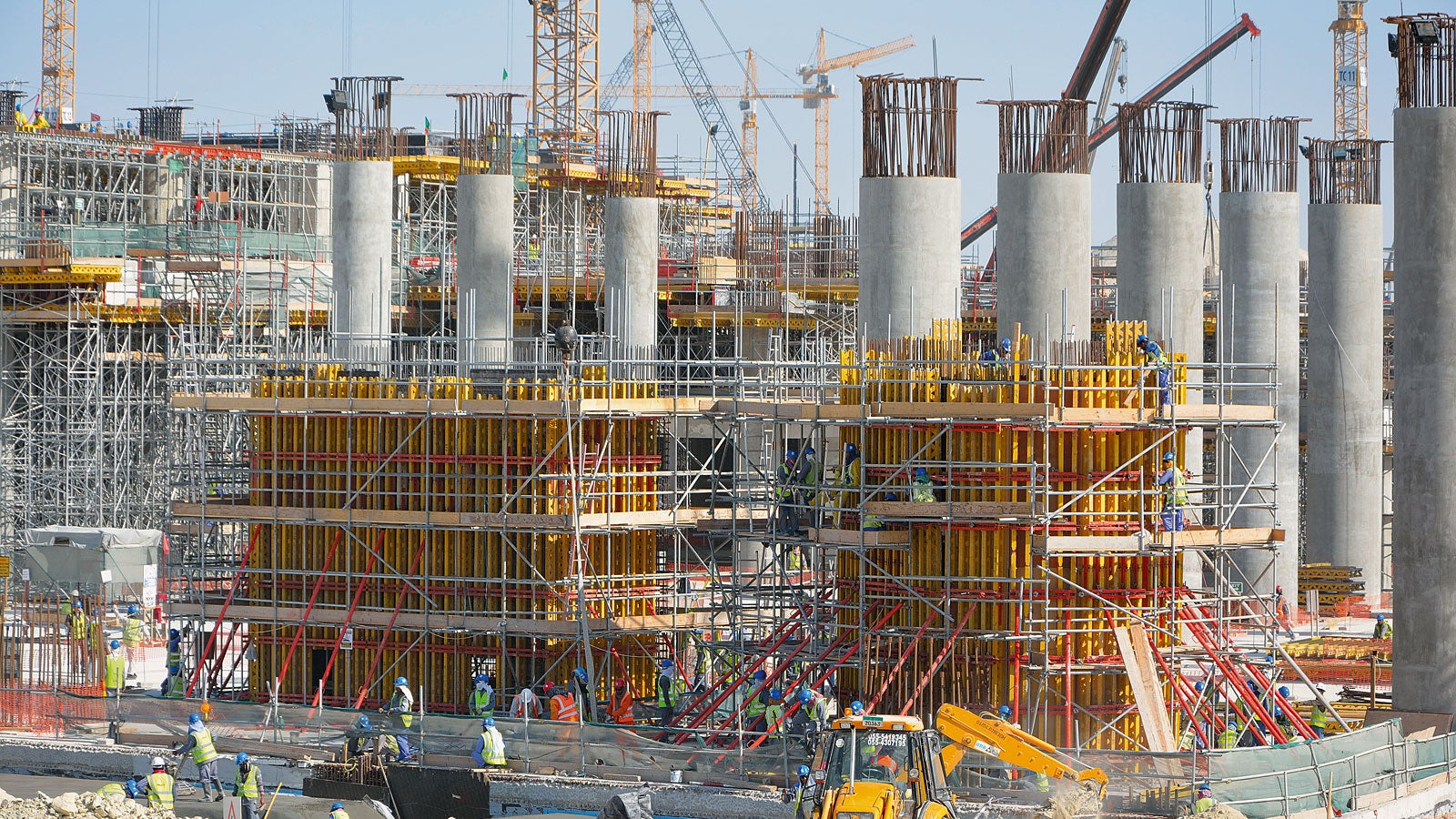

Pour le coffrage des voiles en béton armé d'une hauteur maximale de 12,50 m, le coffrage de voiles VARIO GT 24 offre un niveau maximal d'adaptabilité grâce à la disposition variable des poutres en treillis, des murs en acier et des positions des tirants.

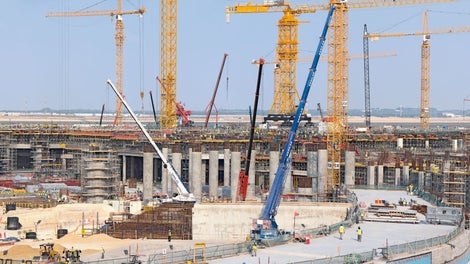

PERI soutient la progression rapide de la construction avec plus de 6 000 tables de dalles ainsi que des solutions de coffrage complètes, y compris pour les murs et les colonnes. À partir de 2017, jusqu'à 30 millions de passagers seront accueillis chaque année.
![Midfield Terminal Building, Abu Dhabi - The Midfield Terminal Complex is the ultimate in construction sites.](https://cdn.peri.cloud/.imaging/mWide/dam/09d2181a-ea24-451e-80ef-61381aa45ce3/47945/midfield-terminal-building-the-ultimate-in-construction-sites.jpg)
![Midfield Terminal Building - the ultimate in construction sites Midfield Terminal Building, Abu Dhabi - The Midfield Terminal Complex is the ultimate in construction sites.](https://cdn.peri.cloud/.imaging/mWide/dam/09d2181a-ea24-451e-80ef-61381aa45ce3/47945/midfield-terminal-building-the-ultimate-in-construction-sites.jpg)
![Midfield Terminal Building, Abu Dhabi - Over 6,000 PD 8 slab tables are in continuous use which is the equivalent to an area of almost 10 football pitches.](https://cdn.peri.cloud/.imaging/mWide/dam/50269e8a-f304-46e2-85bd-55a0afb8aeb2/47946/midfield-terminal-building-over-6-000-pd-8-slab-tables-are-in-continuous-use.jpg)
![Midfield Terminal Building - Over 6,000 PD 8 slab tables are in continuous use Midfield Terminal Building, Abu Dhabi - Over 6,000 PD 8 slab tables are in continuous use which is the equivalent to an area of almost 10 football pitches.](https://cdn.peri.cloud/.imaging/mWide/dam/50269e8a-f304-46e2-85bd-55a0afb8aeb2/47946/midfield-terminal-building-over-6-000-pd-8-slab-tables-are-in-continuous-use.jpg)
![Midfield Terminal Building, Abu Dhabi - The massive beams are being constructed in one pour together with the slabs.](https://cdn.peri.cloud/.imaging/lPortrait/dam/71cd35da-16c2-4f1c-9828-bf63122e345e/47947/midfield-terminal-building-the-massive-beams-are-being-constructed-in-one-pour.jpg)
![Midfield Terminal Building - The massive beams are being constructed in one pour Midfield Terminal Building, Abu Dhabi - The massive beams are being constructed in one pour together with the slabs.](https://cdn.peri.cloud/.imaging/lPortrait/dam/71cd35da-16c2-4f1c-9828-bf63122e345e/47947/midfield-terminal-building-the-massive-beams-are-being-constructed-in-one-pour.jpg)
![Midfield Terminal Building, Abu Dhabij - Moveable PD 8 slab tables form the load-bearing sub-structure along the beams; for the slabs, MULTIFLEX girder slab formwork is used.](https://cdn.peri.cloud/.imaging/mWide/dam/ce6b4651-7898-41f2-acab-e32d3660e3dc/47947/midfield-terminal-building-moveable-pd-8-slab-tables-and-multiflex-girder-slab-formwork-is-used.jpg)
![Midfield Terminal Building - Moveable PD 8 slab tables and MULTIFLEX girder slab formwork is used Midfield Terminal Building, Abu Dhabij - Moveable PD 8 slab tables form the load-bearing sub-structure along the beams; for the slabs, MULTIFLEX girder slab formwork is used.](https://cdn.peri.cloud/.imaging/mWide/dam/ce6b4651-7898-41f2-acab-e32d3660e3dc/47947/midfield-terminal-building-moveable-pd-8-slab-tables-and-multiflex-girder-slab-formwork-is-used.jpg)
![Midfield Terminal Building, Abu Dhabi - Easy lateral transport: the PD 8 slab tables can be moved by hand by means of a transportation trolley. This reduces crane requirements quite considerably.](https://cdn.peri.cloud/.imaging/lPortrait/dam/8409ca16-bb03-4a5e-8917-4ae005ebabd0/48116/midfield-terminal-building-the-pd-8-slab-tables-can-be-moved-by-hand.jpg)
![Midfield Terminal Building - the PD 8 slab tables can be moved by hand Midfield Terminal Building, Abu Dhabi - Easy lateral transport: the PD 8 slab tables can be moved by hand by means of a transportation trolley. This reduces crane requirements quite considerably.](https://cdn.peri.cloud/.imaging/lPortrait/dam/8409ca16-bb03-4a5e-8917-4ae005ebabd0/48116/midfield-terminal-building-the-pd-8-slab-tables-can-be-moved-by-hand.jpg)
![Midfield Terminal Building, Abu Dhabi - PD 8 is the proven shoring system for slab tables and accommodates high loads. With only two different frame heights, almost any required height can be realized.](https://cdn.peri.cloud/.imaging/lPortrait/dam/4a05f307-5809-47ec-97b3-0b33d3f0eb2b/48117/midfield-terminal-building-pd-8-is-the-proven-shoring-system-for-slab-tables-and-accommodates-high-loads.jpg)
![Midfield Terminal Building - PD 8 is the proven shoring system for slab tables and accommodates high loads Midfield Terminal Building, Abu Dhabi - PD 8 is the proven shoring system for slab tables and accommodates high loads. With only two different frame heights, almost any required height can be realized.](https://cdn.peri.cloud/.imaging/lPortrait/dam/4a05f307-5809-47ec-97b3-0b33d3f0eb2b/48117/midfield-terminal-building-pd-8-is-the-proven-shoring-system-for-slab-tables-and-accommodates-high-loads.jpg)
![Midfield Terminal Building, Abu Dhabi - In order to process over 1,000 m³ every day, huge numbers of personnel and material are required.](https://cdn.peri.cloud/.imaging/mWide/dam/3a657d37-b5a9-46bb-a2a0-ed8a6eab0f4e/48117/midfield-terminal-building-over-1-000-m%C2%B3-every-day.jpg)
![Midfield Terminal Building - over 1,000 m³ every day Midfield Terminal Building, Abu Dhabi - In order to process over 1,000 m³ every day, huge numbers of personnel and material are required.](https://cdn.peri.cloud/.imaging/mWide/dam/3a657d37-b5a9-46bb-a2a0-ed8a6eab0f4e/48117/midfield-terminal-building-over-1-000-m%C2%B3-every-day.jpg)
![Midfield Terminal Building, Abu Dhabi - For forming the up to 12.50 m high reinforced concrete walls, VARIO GT 24 girder wall formwork provides a maximum level of adaptability through the variable arrangement of lattice girders, steel walers and tie positions.](https://cdn.peri.cloud/.imaging/mWide/dam/4d9a178b-383c-456a-8af7-e6f2d0306a02/48118/midfield-terminal-building-vario-gt-24-girder-wall-formwork-provides-a-maximum-level-of-adaptability.jpg)
![Midfield Terminal Building - VARIO GT 24 girder wall formwork provides a maximum level of adaptability Midfield Terminal Building, Abu Dhabi - For forming the up to 12.50 m high reinforced concrete walls, VARIO GT 24 girder wall formwork provides a maximum level of adaptability through the variable arrangement of lattice girders, steel walers and tie positions.](https://cdn.peri.cloud/.imaging/mWide/dam/4d9a178b-383c-456a-8af7-e6f2d0306a02/48118/midfield-terminal-building-vario-gt-24-girder-wall-formwork-provides-a-maximum-level-of-adaptability.jpg)
![Midfield Terminal Building, Abu Dhabi - PERI is supporting the fast construction progress with over 6,000 slab tables as well as comprehensive formwork solutions, also for the walls and columns. As of 2017, up to 30 million passengers will be handled annually.](https://cdn.peri.cloud/.imaging/mWide/dam/8b9610fb-7975-4292-b45b-1f7c9640d2f0/48118/midfield-terminal-building-fast-construction-progress-with-over-6-000-slab-tables.jpg)
![Midfield Terminal Building - fast construction progress with over 6,000 slab tables Midfield Terminal Building, Abu Dhabi - PERI is supporting the fast construction progress with over 6,000 slab tables as well as comprehensive formwork solutions, also for the walls and columns. As of 2017, up to 30 million passengers will be handled annually.](https://cdn.peri.cloud/.imaging/mWide/dam/8b9610fb-7975-4292-b45b-1f7c9640d2f0/48118/midfield-terminal-building-fast-construction-progress-with-over-6-000-slab-tables.jpg)
![Midfield Terminal Building - the ultimate in construction sites Midfield Terminal Building, Abu Dhabi - The Midfield Terminal Complex is the ultimate in construction sites.](https://cdn.peri.cloud/.imaging/mWide/dam/09d2181a-ea24-451e-80ef-61381aa45ce3/47945/midfield-terminal-building-the-ultimate-in-construction-sites.jpg)
Le complexe du terminal Midfield est le nec plus ultra des chantiers de construction : afin de respecter le calendrier de construction serré, PERI a planifié et livré les systèmes de coffrage et d'échafaudage, et a fourni une nouvelle performance convaincante grâce à un service d'ingénierie compétent et à la fourniture d'énormes quantités de matériaux dans des délais très courts.
![Midfield Terminal Building - Over 6,000 PD 8 slab tables are in continuous use Midfield Terminal Building, Abu Dhabi - Over 6,000 PD 8 slab tables are in continuous use which is the equivalent to an area of almost 10 football pitches.](https://cdn.peri.cloud/.imaging/mWide/dam/50269e8a-f304-46e2-85bd-55a0afb8aeb2/47946/midfield-terminal-building-over-6-000-pd-8-slab-tables-are-in-continuous-use.jpg)
Plus de 6 000 tables PD 8 sont utilisées en permanence, ce qui équivaut à une surface de près de 10 terrains de football.
![Midfield Terminal Building - The massive beams are being constructed in one pour Midfield Terminal Building, Abu Dhabi - The massive beams are being constructed in one pour together with the slabs.](https://cdn.peri.cloud/.imaging/lPortrait/dam/71cd35da-16c2-4f1c-9828-bf63122e345e/47947/midfield-terminal-building-the-massive-beams-are-being-constructed-in-one-pour.jpg)
Les poutres massives sont construites en une seule coulée avec les dalles - à l'aide de tables de dalles PD 8 robustes et porteuses et d'éléments LIWA légers comme coffrage latéral.
![Midfield Terminal Building - Moveable PD 8 slab tables and MULTIFLEX girder slab formwork is used Midfield Terminal Building, Abu Dhabij - Moveable PD 8 slab tables form the load-bearing sub-structure along the beams; for the slabs, MULTIFLEX girder slab formwork is used.](https://cdn.peri.cloud/.imaging/mWide/dam/ce6b4651-7898-41f2-acab-e32d3660e3dc/47947/midfield-terminal-building-moveable-pd-8-slab-tables-and-multiflex-girder-slab-formwork-is-used.jpg)
Les tables de dalles PD 8 mobiles forment la sous-structure porteuse le long des poutres ; pour les dalles, on utilise le coffrage de dalles à poutrelles MULTIFLEX.
![Midfield Terminal Building - the PD 8 slab tables can be moved by hand Midfield Terminal Building, Abu Dhabi - Easy lateral transport: the PD 8 slab tables can be moved by hand by means of a transportation trolley. This reduces crane requirements quite considerably.](https://cdn.peri.cloud/.imaging/lPortrait/dam/8409ca16-bb03-4a5e-8917-4ae005ebabd0/48116/midfield-terminal-building-the-pd-8-slab-tables-can-be-moved-by-hand.jpg)
Transport latéral aisé : les tables à dalles PD 8 peuvent être déplacées à la main à l'aide d'un chariot de transport. Cela permet de réduire considérablement les besoins en grues.
![Midfield Terminal Building - PD 8 is the proven shoring system for slab tables and accommodates high loads Midfield Terminal Building, Abu Dhabi - PD 8 is the proven shoring system for slab tables and accommodates high loads. With only two different frame heights, almost any required height can be realized.](https://cdn.peri.cloud/.imaging/lPortrait/dam/4a05f307-5809-47ec-97b3-0b33d3f0eb2b/48117/midfield-terminal-building-pd-8-is-the-proven-shoring-system-for-slab-tables-and-accommodates-high-loads.jpg)
PD 8 est le système d'étaiement éprouvé pour les tables de dalles et supporte des charges élevées. Avec seulement deux hauteurs de cadre différentes, il est possible de réaliser presque toutes les hauteurs souhaitées.
![Midfield Terminal Building - over 1,000 m³ every day Midfield Terminal Building, Abu Dhabi - In order to process over 1,000 m³ every day, huge numbers of personnel and material are required.](https://cdn.peri.cloud/.imaging/mWide/dam/3a657d37-b5a9-46bb-a2a0-ed8a6eab0f4e/48117/midfield-terminal-building-over-1-000-m%C2%B3-every-day.jpg)
Le traitement de plus de 1 000 m³ par jour nécessite un nombre considérable de personnel et de matériel.
![Midfield Terminal Building - VARIO GT 24 girder wall formwork provides a maximum level of adaptability Midfield Terminal Building, Abu Dhabi - For forming the up to 12.50 m high reinforced concrete walls, VARIO GT 24 girder wall formwork provides a maximum level of adaptability through the variable arrangement of lattice girders, steel walers and tie positions.](https://cdn.peri.cloud/.imaging/mWide/dam/4d9a178b-383c-456a-8af7-e6f2d0306a02/48118/midfield-terminal-building-vario-gt-24-girder-wall-formwork-provides-a-maximum-level-of-adaptability.jpg)
Pour le coffrage des voiles en béton armé d'une hauteur maximale de 12,50 m, le coffrage de voiles VARIO GT 24 offre un niveau maximal d'adaptabilité grâce à la disposition variable des poutres en treillis, des murs en acier et des positions des tirants.
![Midfield Terminal Building - fast construction progress with over 6,000 slab tables Midfield Terminal Building, Abu Dhabi - PERI is supporting the fast construction progress with over 6,000 slab tables as well as comprehensive formwork solutions, also for the walls and columns. As of 2017, up to 30 million passengers will be handled annually.](https://cdn.peri.cloud/.imaging/mWide/dam/8b9610fb-7975-4292-b45b-1f7c9640d2f0/48118/midfield-terminal-building-fast-construction-progress-with-over-6-000-slab-tables.jpg)
PERI soutient la progression rapide de la construction avec plus de 6 000 tables de dalles ainsi que des solutions de coffrage complètes, y compris pour les murs et les colonnes. À partir de 2017, jusqu'à 30 millions de passagers seront accueillis chaque année.
Informations sur le projet
